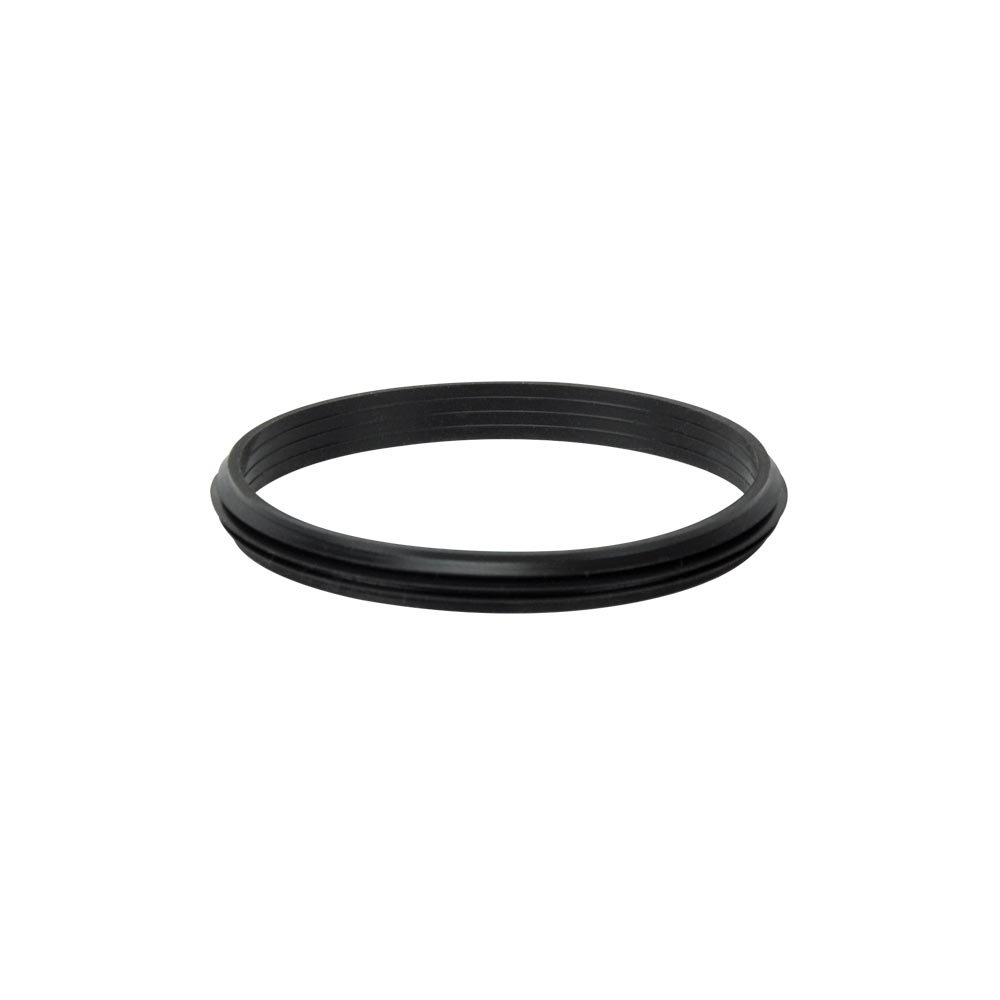

SAVE pipes are enamelled steel pipes which are coated on both the inside and outside of the pipe. Fergus Engineering supplies a range of vitreous pipes which have been specially designed for pellet or solid fuel burning stoves which require a very high pressure. For pellet stoves, these pipes have a housing in which the required gasket can be fitted.

They have a total thickness, including the steel + enamel, of 1.4mm. These pipes are laser welded and resistant to extreme situations such as a soot-fire (a fire that occurs inside the pipe) without being damaged or modified.

SAVE pipes are high quality and are CE approved. These products guarantee the resistance and stability of the colour even at very high temperatures: classified as class T600, the highest according to standard EN1856-2.

Fergus Engineering stock 80mm & 100mm diameter SAVE Matt Black flue for Pellet Stoves and SAVE Matt Black Flue for Solid Fuel Appliances in 100mm, 125mm, 150mm, 180mm and 200mm diameters.

Downloads

SAVE DOP

Download now (513 KB)
